Core Applications and Technical Specifications of CNC Machining in the Field of Petroleum Pipe Fittings
In the field of oil and gas exploration and production, petroleum pipe fittings serve as the “lifeline” connecting subterranean resources with surface systems. According to the American Petroleum Institute (API), over 25 million tons of specialized petroleum pipes are consumed globally each year. Among these, key components require machining precision down to the micron level. This article focuses on typical components—such as casing couplings, valve bodies, and blowout preventer assemblies—and analyzes the critical technological applications and industry standards of CNC machining in the manufacture of petroleum pipe fittings.
I. Core Components of Petroleum Pipe Fittings and Operational Challenges
1.1 Typical Component Classification and Technical Parameters
| Component Name | Application | Key Parameters | Failure Risk |
|---|---|---|---|
| Casing Coupling | Well connection | Thread coaxiality ≤ 0.02 mm | Thread disengagement leading to a blowout |
| Wellhead Valve Body | Flow control | Seal surface roughness Ra ≤ 0.8 μm | Seal failure causing leakage |
| Blowout Preventer Gate | Well pressure control | Flatness ≤ 0.01 mm/300 mm | Inadequate closure resulting in a well control incident |
| Drill Pipe Transition Joint | Drill connection | Torsional strength ≥ 1200 kN·m | Fracture leading to drill drop |
1.2 Challenges Posed by Extreme Operating Conditions
- High-Pressure Corrosive Environment: Deep-well operations can experience pressures up to 100 MPa, with H₂S-containing media accelerating stress corrosion.
- Cyclic Loads: Drill pipe joints endure high-frequency impact vibrations at a rate of 200 cycles per minute.
- Temperature Gradients: Operating conditions may range from –50°C (in Arctic oil fields) to 200°C (in deep thermal recovery), imposing severe thermal challenges.
II. Key Technological Applications of CNC Machining

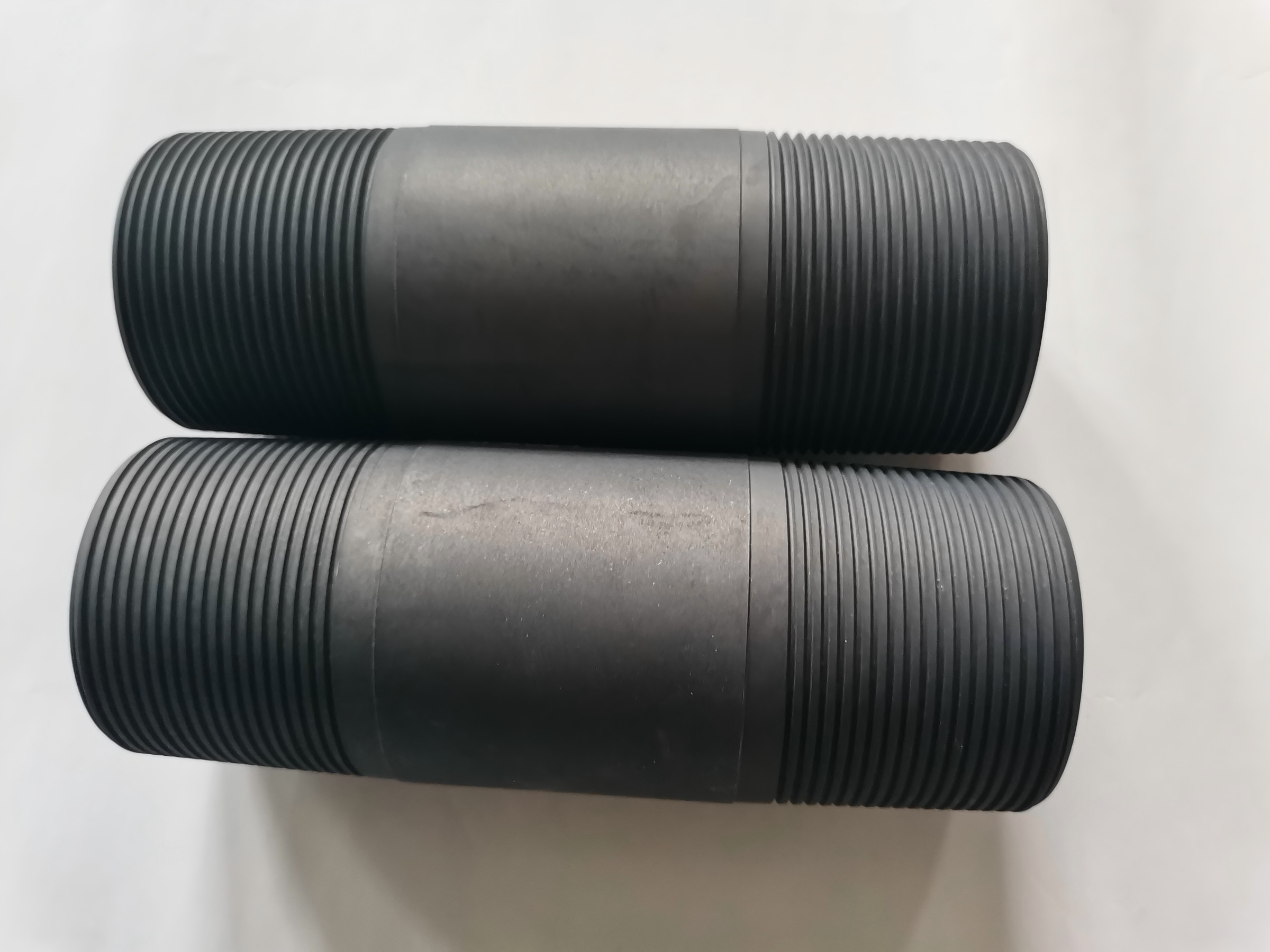

2.1 Precision Thread Machining for Casing Couplings
Processing Challenges:
The machining process must meet the API 5B standard’s geometrical and positional tolerance requirements for LCSG special threads:
- Taper Tolerance: ±0.0625 mm per 25.4 mm
- Tooth Height Deviation: ≤ ±0.013 mm
CNC Solution:
Utilize a HAAS ST-30Y turning-milling composite center with the following process strategies:
- Hard Turning as a Replacement for Grinding: Machine 4140H steel with CBN tools at a cutting speed (Vc) of 220 m/min to achieve a surface roughness of Ra 0.4 μm.
- Online Detection and Compensation: A Marposs electronic probe automatically corrects for tool wear every 5 parts.
- Constant Temperature Control: Maintain temperature fluctuations within the machining zone to within ±0.5°C.
Performance Data:
After implementation, the thread component pass rate increased from 87% to 99.2%, and machining efficiency improved by 40%.
2.2 Flow Channel Machining for Wellhead Valve Bodies
Typical Component:
- Component: Gate valve body (Material: ASTM A182 F316)
- Main Channel Diameter: Φ152.4 mm ± 0.1 mm
- Guide Groove Contour Tolerance: 0.05 mm
Five-Axis Machining Strategy:
- Cycloidal Milling Technique: Employ a Ø16 mm solid carbide end mill to machine irregular flow channels with a radial depth of cut (ae) of 0.3 mm.
- Tool Path Optimization: Use VERICUT simulation to eliminate tool chatter at the corners of the flow channels.
- Minimum Quantity Lubrication (MQL): Apply atomized cutting fluid at 0.05 MPa to triple tool life.
Process Breakthrough:
A valve body manufacturer in China implemented a DMU 80P five-axis machine to consolidate what originally required three separate operations into a single clamping setup, thereby reducing machining time by 58%.
2.3 Deep Hole Machining for Blowout Preventer Gates
Technical Requirements:
- Blind Hole Depth: 420 mm ± 0.15 mm
- Hole Wall Straightness: 0.02 mm per 100 mm
Deep Hole Drilling Approach:
- Gun Drilling System: Equipped with an internally cooled TBT deep hole drill operating with a cutting fluid pressure of 7 MPa.
- Vibration Suppression: Use an active vibration-damping tool holder operating at 500 Hz to maintain vibration amplitude within 2 μm.
- Process Monitoring: A Kistler dynamometer continuously monitors axial force fluctuations, automatically halting the process if deviations exceed 10%.
Industry Case:
An equipment supplier in the Middle East achieved deep hole machining precision that meets the highest API 16A standard (PR2 grade) while processing 4340Mod steel for gate valves.
III. Core Requirements for CNC Machining of Petroleum Pipe Fittings
3.1 Material Handling Specifications
Heat Treatment Process:
- Quenching and Tempering: For 4130 steel, perform quenching at 850°C followed by tempering at 600°C to achieve a hardness of HRC 28–32.
- Surface Hardening: Apply laser cladding on the gate valve seal surface to achieve a hardness of ≥ HRC 55.
Material Certification:
Materials must be certified in accordance with API 5CT/5L standards, including:
- Sulfur and Phosphorus Content: ≤ 0.015%
- Charpy Impact Energy: ≥ 54 J (at –20°C)
3.2 Machining Precision Grades
| Precision Parameter | Conventional Grade | Precision Grade | Ultra-Precision Grade |
|---|---|---|---|
| Dimensional Tolerance | ±0.1 mm | ±0.03 mm | ±0.01 mm |
| Positional Tolerance | 0.15 mm | 0.05 mm | 0.02 mm |
| Surface Roughness (Ra) | 3.2 μm | 1.6 μm | 0.8 μm |
Note: High-pressure seal surfaces and threaded mating surfaces must achieve the ultra-precision grade.
3.3 Inspection and Certification Systems
- Coordinate Measuring Machine (CMM) Inspection: Perform point cloud scanning of the valve body flow channel and compare it with the CAD model, with deviations not exceeding 0.05 mm.
- Pressure Testing: Maintain 1.5 times the working pressure for 30 minutes with a leakage rate below 0.1 mL/min.
- Third-Party Certification: Certification by classification societies such as DNV GL, ABS, etc., is mandatory.
IV. Technological Development Trends
4.1 Breakthroughs in Hybrid Machining Technologies
- Hybrid Machining Centers: Machines such as the MAZAK INTEGREX i-800 can complete the machining of threads, end faces, and oil holes for drill pipe joints in a single setup.
- Hybrid Additive Manufacturing: Laser cladding of Stellite 6 alloy on valve seats can enhance wear resistance by up to five times.
4.2 Intelligent Machining Systems
- Adaptive Control Systems: Utilize vibration sensors to dynamically adjust feed rates, extending tool life by 40% when machining 4140 steel.
- Digital Twin Platforms: Employ Siemens NX software to create virtual machining models that predict and eliminate over 80% of machining deformations.
4.3 Green Manufacturing Processes
- Dry Cutting Technology: Use TiAlN-coated tools to machine Inconel 718, completely eliminating the need for cutting fluids.
- Chip Recycling Systems: Through magnetic separation and eddy current sorting, achieve a recycled alloy steel purity of up to 99.8%.
V. Typical Industry Practices
Case Study: Technological Upgrades by a Global Top-3 Oilfield Service Company
- Workpiece: FH-class wellhead assembly valve body (Material: F22 duplex stainless steel)
- Process Innovations:
- Utilization of a Hermle C62 five-axis machine for contour milling.
- Application of high-speed hard milling (HSM) with a spindle speed of 18,000 rpm.
- Integration of a Renishaw RMP600 probing system for online inspection.
- Results:
- Reduction in processing time per unit from 14 hours to 8.5 hours.
- Increase in the flatness pass rate of the seal surface from 91% to 99.7%.
- Annual machining cost savings of USD 1.2 million.
Conclusion
In the manufacturing of petroleum pipe fittings, CNC machining has evolved from simple shape formation to a complex systems engineering discipline that incorporates material science, thermodynamics, and fluid mechanics. As oil and gas extraction extends into extreme environments such as deep-sea and shale formations, the performance requirements for pipe components will become even more stringent. Only by continuously innovating machining technologies and perfecting quality systems can companies secure a competitive edge in the global energy equipment market.
