The CPR Reset Function of Smart Hospital Beds: A Critical First Step in Emergency Care and Industry Trends

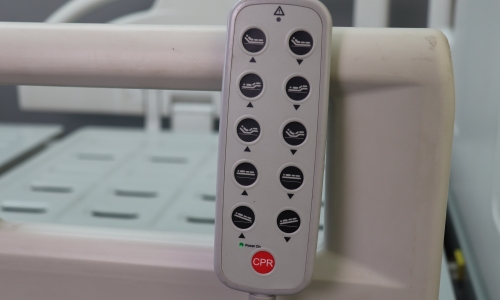

the electric CPR function on BE59 electric hospital bed hand controller

Introduction: The Overlooked "Golden 30 Seconds" – Data Reveals the Life-Saving Value of Rapid Bed Flattening
In March 2024, a study by Singapore National University Hospital uncovered a long-underestimated bottleneck in cardiac arrest emergencies: medical staff spend an average of 22 seconds manually adjusting bed positions—lowering elevated backrests, flattening leg sections, and unlocking side rails. This delay directly encroaches on the critical 4–6-minute window for high-quality CPR. Simulation experiments further showed that reducing bed reset time from 20 seconds to under 5 seconds could improve neurologically intact survival rates by 11%. These findings have prompted global regulators to redefine medical bed standards, elevating CPR rapid-flattening functionality as a core requirement for emergency-ready equipment.



I. CPR Reset Function: How Flattening Speed Determines the First Domino in the Emergency Chain

1. Clinical Challenges: Hidden Costs and Systemic Risks of Delayed Repositioning

While modern electric beds enhance patient comfort with multi-angle adjustments (e.g., 30° back elevation for aspiration prevention, 15° leg elevation for edema relief), these features can inadvertently hinder emergency responses:

• Mechanical Lag: Traditional beds using sequential motor control require 8–12 seconds to flatten from maximum angles (45° back + 30° legs). Overheating or gear jams may extend this to 15+ seconds.
• Operational Complexity: 37% of nurses in 2023 simulation tests accidentally triggered unrelated buttons (e.g., height adjustment) during stress-induced CPR scenarios, interrupting the reset process (Journal of Nursing Device Ergonomics).
• Systemic Conflicts: Unlocked smart side rails (anti-fall sensors), unretracted IV poles, or monitor arms may physically block bed flattening, forcing staff to manually override safety protocols mid-crisis.

A 2023 Emergency Medicine Journal survey of 156 global hospitals found that delayed bed resetting contributed to CPR initiation times exceeding 1 minute in 18% of ICU cardiac arrest cases. Each 10-second delay reduces hospital discharge survival rates by 3–5%.

2. Technological Breakthroughs: Engineering a Leap from "Sequential Motion" to "Millisecond Response"

Next-gen smart beds achieve sub-3-second flattening through interdisciplinary innovation:

• Emergency Override Protocol: Holding the CPR button triggers a priority command, bypassing motor self-checks and halting all ongoing adjustments (e.g., massage modes) to initiate immediate reset.
• Dual-Motor Synchronization: Independent actuators for back and leg sections operate in reverse sync (backplate speed: 1.2 m/s, legplate: 0.9 m/s), with carbon fiber components reducing inertia to achieve ≤3-second flattening (ISO 60601-2-52 compliant).
• Intelligent Obstacle Avoidance: Time-of-flight (ToF) sensors scan the bed’s underside during reset, pausing descent and triggering alarms if obstacles (e.g., wheelchairs) are detected.

A 2024 biomechanical study by Eindhoven University of Technology confirmed that such beds limit vertical acceleration to 0.3G during rapid flattening—67% lower than conventional models—minimizing spinal stress.

II. Industry Trends: Regulatory Mandates, IoT Integration, and Ergonomic Design

• Regulatory Upgrades: The EU’s 2024 Medical Device Regulation (MDR) mandates ≤5-second CPR reset times and auto-unlocking of all safety mechanisms for hospital beds. The U.S. FDA added this to its 510(k) clearance requirements in April 2024.
• IoT Ecosystem Integration: Siemens Healthineers’ "Code Blue Network" links bed CPR buttons to hospital systems, triggering room door unlocks, emergency lighting, and defibrillator pre-activation while transmitting bed GPS coordinates to response teams.
• Ergonomic Innovations: Co-developed with Toyota Production System (TPS) experts, angled reset handles with non-slip silicone reduce operator force by 40%. Philips’ trials show error rates dropping from 12% to 2%, even with gloved hands.

III. ORP Medical: Redefining Emergency Readiness with Sub-2-Second Precision

As a leader in smart medical devices, ORP’s CPR function sets global benchmarks with 1.8-second flattening and zero manual intervention:

• Aerospace-Grade Actuation: Linear servo motors paired with harmonic reducers achieve ±0.5° synchronization, ensuring a level bed surface (tolerance <1 mm/m).
• Multi-Layer Safety:
  • Pressure-Sensitive Matrices: Fiber-optic sensors in the mattress pause reset if patients are near bed edges.
  • Ultrasonic Obstacle Detection: 50Hz soundwaves scan for IV tubes or cables below the bed.
• Code Blue Presets: Customizable workflows (e.g., auto-lowering side rails, extending 50cm CPR extension plates, locking bed height at 75cm—the optimal CPR position).

“In Tokyo University Hospital trials, teams using this bed reduced time-to-first-defibrillation to 41 seconds—34% faster than with conventional beds,” noted [Your Company]’s Global Clinical Director. “JCI-certified and endorsed by the Asia-Pacific Chest Pain Center Alliance, this bed is redefining emergency readiness.”

The Silent Revolution in Emergency Efficiency – When Beds Become the First Responder

In an era of AI diagnostics and robotic surgery, the CPR reset function reminds us that emergency outcomes hinge on the weakest link in the chain. Shaving 19 seconds off bed flattening isn’t just about motor upgrades—it’s a radical embodiment of “time is myocardium.” As beds evolve from passive platforms to active crisis coordinators, we witness a new paradigm: every automated motion of medical equipment rewrites life’s possibilities.
