Depth of Discharge (DoD) & Opportunity Charging: The Keys to Extending Lead-Acid Battery Life





The lead-acid battery remains one of the most common rechargeable batteries globally, serving as the power backbone for everything from vehicles to essential marine battery systems. Its ability to be recharged repeatedly is a key feature. However, every lead-acid battery has a finite lifespan, measured in charge cycles. Many users are surprised when their batteries fail prematurely, often unaware that how they use and charge their batteries is the single most important factor.

Two terms that are critical to understanding battery longevity, yet often misunderstood by novices, are Depth of Discharge (DoD) and Opportunity Charging. This article will demystify these concepts, explain why DoD is the primary determinant of your battery's service life, and provide actionable advice to help you maximize your battery investment.



What is Depth of Discharge (DoD)? The Key to Battery Longevity


Depth of Discharge (DoD) refers to the percentage of a battery's total capacity that has been used before it is recharged. It's a measure of how "deeply" you drain the battery during a cycle.

Think of your battery like a water tank:

• A full tank is at 0% DoD.
• If you use half the water, the tank is at 50% DoD.
• If you empty the tank completely, it's at 100% DoD.

This is the opposite of State of Charge (SoC), which measures how full the battery is. The two are inversely related: 100% SoC = 0% DoD, and 30% SoC = 70% DoD.

A "cycle" is defined as one period of discharge followed by one period of recharge. How deeply you discharge the battery in each cycle dramatically affects how many total cycles the battery can endure.

How DoD Determines Lead-Acid Battery Lifespan: A Practical Example


Every time a lead-acid battery is discharged and recharged, a small amount of stress is put on its internal components, primarily the lead plates. Deeper discharges create more significant chemical and physical changes, leading to more wear and tear. This means deeper discharges result in a shorter overall battery cycle life.

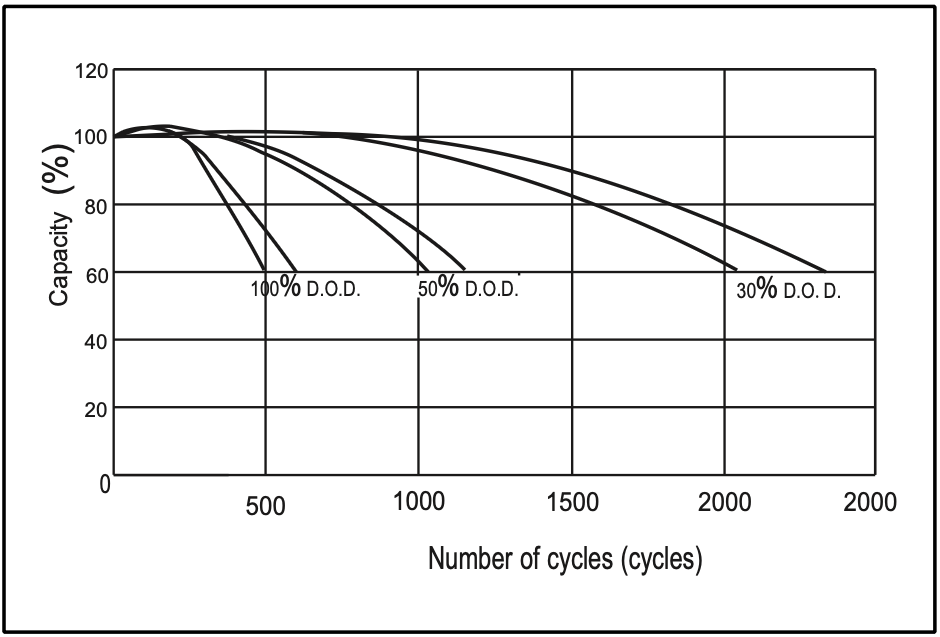

Let's examine this relationship using a real-world example from the performance chart of a BB brand Deep Cycle Battery. This graph clearly illustrates the inverse relationship between the Depth of Discharge and the battery's lifespan in terms of charge cycles.


As the chart demonstrates:

• When the battery is consistently discharged to 100% DoD (using its full capacity in each cycle), it can be expected to last for approximately 500 cycles.
• If we are more conservative and only discharge it to 50% DoD (using half its capacity), the battery lifespan effectively doubles to around 1000 cycles.
• When operated with very shallow discharges to just 30% DoD, the battery's longevity increases dramatically, providing over 2000 cycles.

This data clearly proves the fundamental rule of lead-acid battery care: The shallower the average discharge, the longer the battery's service life in terms of total cycles. Discharging a battery to 100% DoD is the harshest way to use it, while shallow discharges significantly extend its life.



What is Opportunity Charging? A Strategy for High-Use Environments


Opportunity Charging is the practice of charging a battery whenever the opportunity arises, rather than waiting for it to be significantly discharged. It's a strategy often employed in commercial settings (like forklifts during a lunch break) but is also highly relevant for marine applications.

For example, if a sailboat's engine is run for an hour to exit a harbor, that's an opportunity to charge the batteries, even if they are already at 80% State of Charge.

The Connection to DoD:

The primary benefit of Opportunity Charging is that it is a practical way to maintain a lower average Depth of Discharge. By frequently "topping off" the battery, you prevent it from entering deep discharge states that shorten its life. It's a proactive approach to keeping the battery in the upper, healthier range of its charge capacity.

Is Opportunity Charging Good or Bad for Lead-Acid Batteries?

For the most part, it is beneficial because it keeps DoD low. However, there is an important nuance for traditional lead-acid batteries. These batteries need to be brought to a full 100% charge periodically to prevent a condition called acid stratification (where heavier acid settles at the bottom of the battery cells in flooded types) and to combat sulfation. Simply opportunity charging without ever completing a full charge cycle can lead to these issues over time. Therefore, while opportunity charging is a good strategy, it should be paired with a smart charging system that can periodically perform a full, multi-stage charge.



Best Practices for Maximizing Your Lead-Acid Battery Lifespan


Based on these principles, here are actionable tips to get the most out of your marine battery or any deep cycle battery:

1. Design for Shallow Discharges: Whenever possible, try to keep your average Depth of Discharge below 50%. This might mean sizing your battery bank appropriately so that your daily energy needs only consume a small fraction of its total capacity.
2. Recharge Promptly and Fully: Do not leave a battery in a discharged state for long periods, as this accelerates permanent sulfation. After use, recharge the battery fully.
3. Use a Smart, Multi-Stage Charger: Invest in a quality charger that has bulk, absorption, and float stages. This ensures the battery is charged quickly, then topped off completely without being overcharged, which is crucial for lead-acid battery care.
4. Embrace Opportunity Charging Wisely: Take advantage of opportunities to charge your batteries, but ensure your system also allows for a regular, complete charge cycle to 100% SoC.
5. Monitor Your Battery: Use a battery monitor to keep track of your battery's State of Charge and Depth of Discharge. This knowledge allows you to make informed decisions about when to charge and how much power to consume.



Conclusion: Smart Usage for a Longer Battery Life


The longevity of a lead-acid battery is not just a matter of time but a direct result of how it is used. Depth of Discharge (DoD) stands out as the most critical factor influencing the battery cycle life. As demonstrated, consistently shallow discharges can double or even quadruple the number of cycles you can expect from your battery compared to deep discharges.

Strategies like Opportunity Charging are practical ways to maintain a low DoD, but they must be balanced with proper, full charging cycles. By understanding and respecting the relationship between how deeply you use your battery and its ultimate lifespan, you can dramatically extend the service life of your marine battery, ensuring reliable power and a better return on your investment.
