Intelligent Grinding Robot Technology Breakthrough Solves the Problems of Automobile Mold Industry

At present, automobile molds, especially automobile body stamping molds, are still generally polished manually due to the complexity and irregularity of the mold surface.



At present, automobile molds, especially automobile body stamping molds, are still generally polished manually due to the complexity and irregularity of the mold surface. Highly dependent on manual experience, extremely low efficiency, and difficult to effectively control precision have long been industry problems that need to be solved in the field of automobile mold polishing.



After years of intensive research and development, the scientific and technological innovation team of Dajie Intelligent Technology (Guangdong) Co., Ltd. (hereinafter referred to as "Dajeh Intelligent") and Jihua Laboratory have creatively proposed an intelligent mold polishing platform technology that integrates high-precision sensors, intelligent algorithm control, and automated actuators, which completely subverts the pain points of traditional mold polishing that relies on manual experience, is inefficient, and difficult to ensure precision. Dajie Intelligent has applied for an invention patent for this technology, "An Intelligent Mold Polishing Platform and Method Thereof", and has been authorized by the State Intellectual Property Office. At the just-concluded 25th China Patent Award, Dajie Intelligent won the "China Patent Excellence Award" with this invention patent.





It is reported that Dajie Intelligent's intelligent polishing robot system is developed based on the invention patent technology that won the award. The system deeply integrates cutting-edge artificial intelligence, polishing process big data, automated control technology, high-precision sensing and intelligent algorithm systems, achieving an innovative leap in polishing technology. The entire set of robot polishing system, like the hands of a senior craftsman, delicately and accurately carves every inch of the surface of the mold. This series of innovations not only significantly improves production efficiency, solves the industry pain points of relying on benchwork polishing, but also pushes product quality to a new height. In addition, the intelligent polishing robot system was once named "Guangdong Province Famous and High-tech Products in 2023".

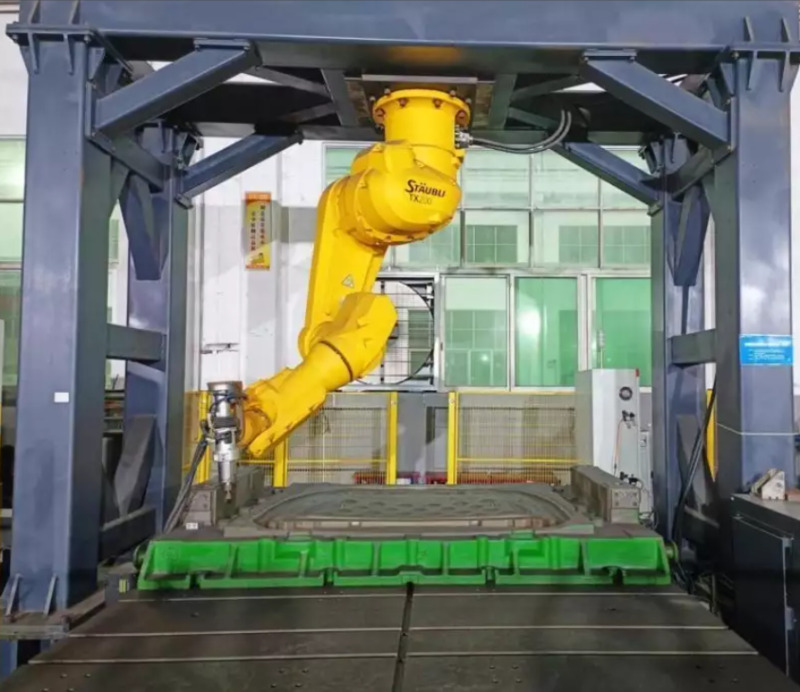

Intelligent Grinding Robot System

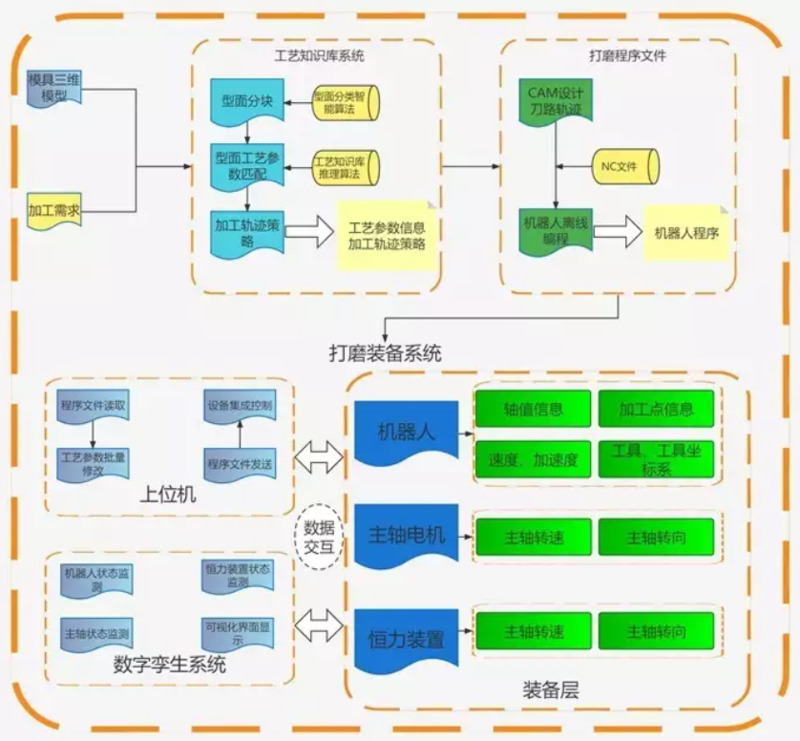

The technical innovation achievements of the intelligent grinding robot system include the following aspects:



1. Through the study of the influence mechanism of process parameters (grinding head material, grinding speed, grinding force, etc.) on grinding quality, a grinding process knowledge base was built, and the process intelligent decision-making model was trained to realize the intelligent analysis of the grinding process.

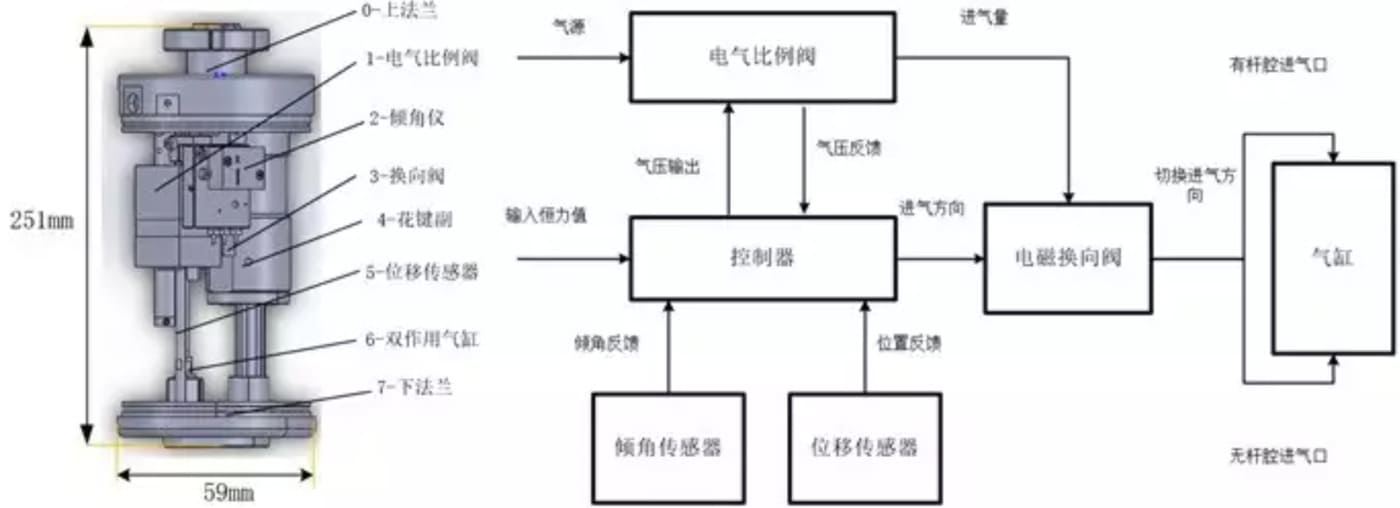

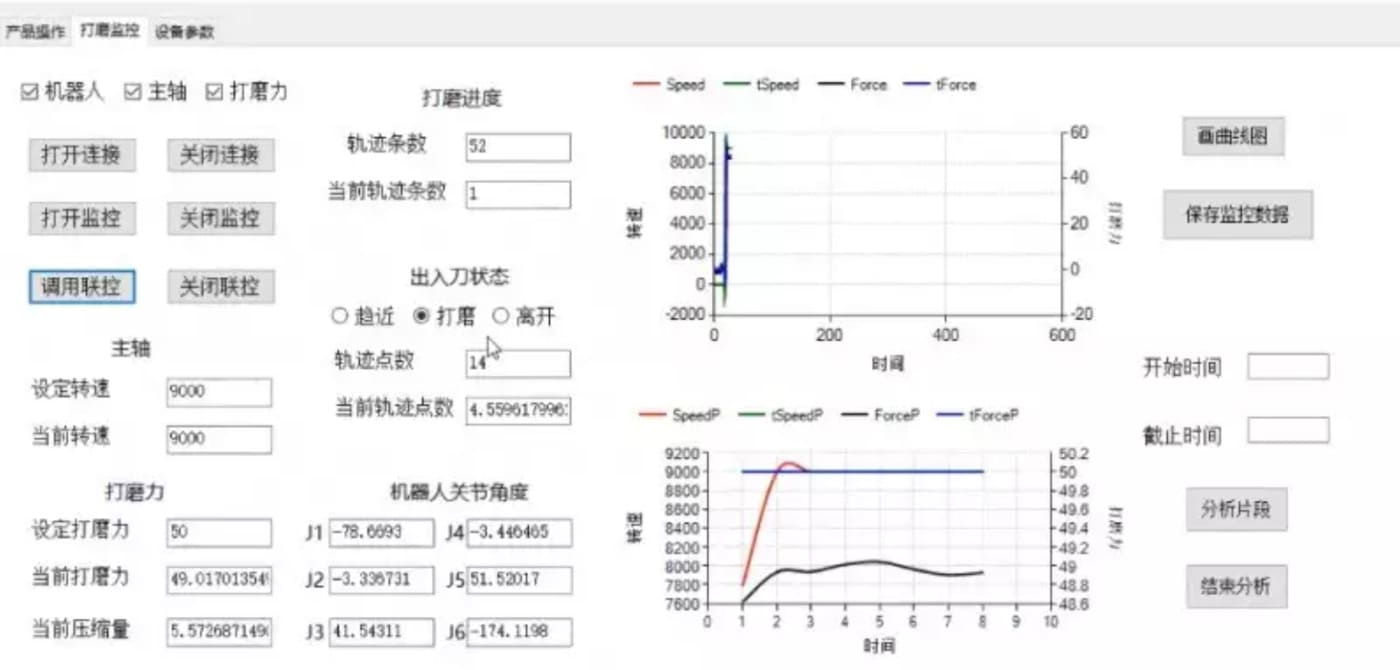

2. Independently develop a constant force floating actuator, and achieve adaptive control of the grinding force through adaptive constant force following algorithm and control software and hardware system technology breakthroughs.

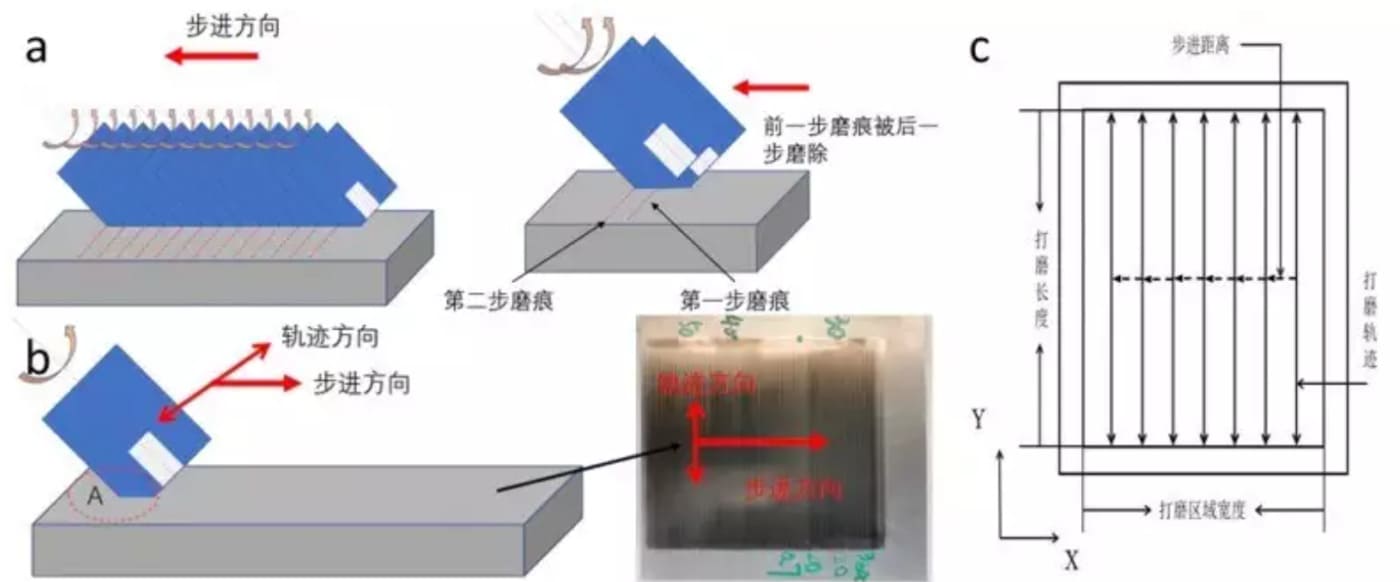

3. Independently develop advanced offline programming functions to realize robot + seventh-axis automatic grinding control, making the adjustment and optimization of grinding strategies more flexible and convenient.







Dajie Intelligent focuses on the research and development and application of "artificial intelligence +" intelligent design systems, and has established the Guangdong Province Mold Intelligent Design and Intelligent Manufacturing Engineering Technology Research Center. In the past five years, it has continued to increase its R&D investment, and its core technology has more than 150 intellectual property rights. The results are widely used in stamping, die-casting, welding and other fields.
